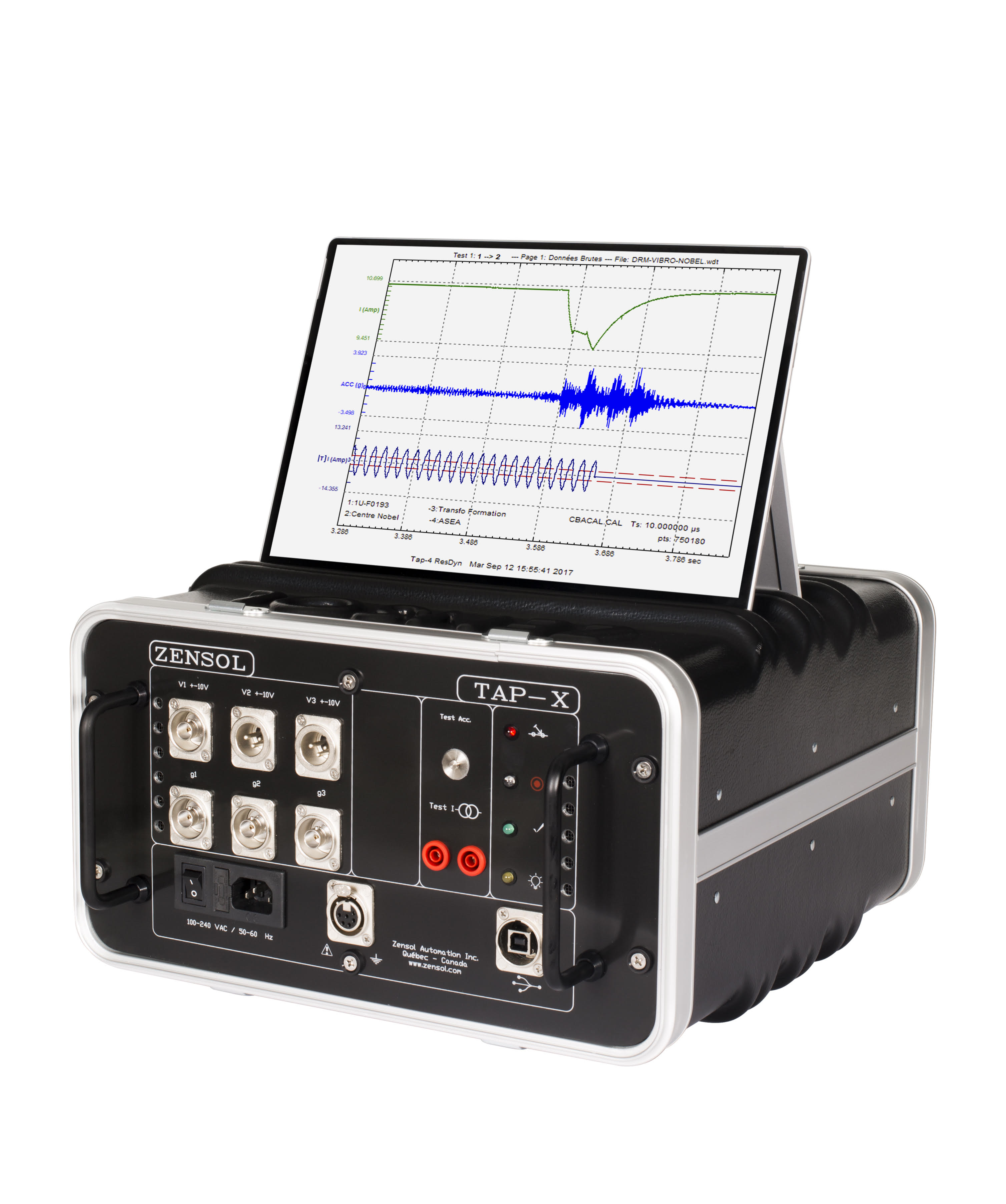

On Load Tap Changer Analyzer – TAP-4-PLUS
The Tap-4-PLUS is the newest instrument by Zensol for OLTC testing. It has 2 more analog inputs than the TAP-4. The TAP-4-PLUS with the TAP-DRM accessory can perform dynamic resistance, vibration, and motor current recordings at the same time. Doing so will allow you to easily understand the vibration impacts.
Like the TAP-4, the TAP-4-PLUS can test all types of OLTC: resistor, reactor, or vacuum, of any brands (Maschinenfabrik Reinhausen (MR), ABB, Federal Pioneer, Ferranti, etc.).
KEY POINTS
- Able to perform dynamic resistance testing
- Vibro-acoustic test with high frequency (100KHz)
- 3 tests in 1 (DRM, vibro-acoustic, and motor current)
- Can be used with all types of OLTCs
- 2 years warranty
Summary of technical description
| Sampling frequency | 100 kHz |
| Sampling time microseconds (μs) | 10 μs |

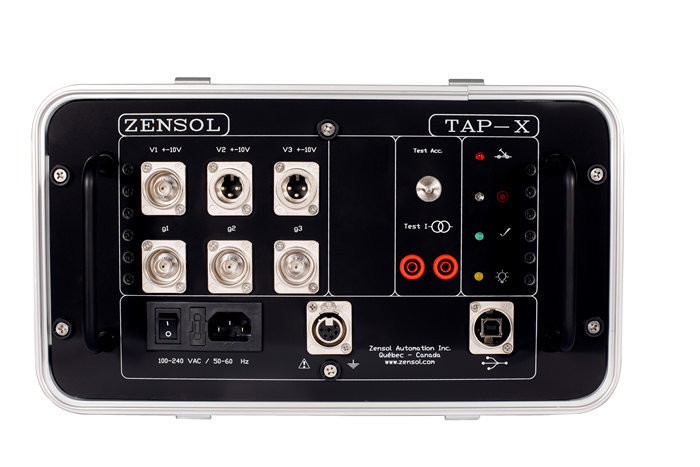

| Analog inputs (-10V to +10V) | 3 |
| Accelerometer inputs | 3 |
| External Trigger | YES |
| Dynamic Resistance capability (DRM) | YES |
| Standalone | NO |
| Recording time | Unlimited |
